BTU Calculator Overview

BTU Calculator: Sizing AC & Heater for Optimal Comfort

Introduction

Running an HVAC business or thinking about starting one? Start here.

Getting heating and cooling right isn’t just about the equipment. It’s about using the right numbers. That starts with knowing how many BTUs you actually need.

BTU stands for British Thermal Unit. It reveals how much cooling or heating power an appliance needs to perform its job effectively. If the number isn't right, the system either works too hard or not hard enough. That could mean higher energy costs, more breakdowns, and unsatisfied customers.

When you're helping customers select the right system or establishing your shop, this is the kind of expertise that will save you time and money and callbacks.

What is BTU?

A BTU is a short form of British Thermal Unit. It's the most basic method to determine the amount of the temperature. 1 BTU represents the energy required to increase the temperature of a pound of water by one degree Fahrenheit.

In HVAC, this number informs how efficient the system is. The greater the BTU, the higher the cooling or heating it can provide.

Imagine it this way:

• If a room requires 10,000 BTUs, this is the amount of cooling power your AC requires to maintain its comfort.
•

• If you pick one that is only able to deliver 6,000 BTUs, then it could run through the day, but it will not be able to keep up.
• Picking one that has at least 20,000 BTUs. It could cool too quickly without enough humidity being removed, which makes the room feel uncomfortable and damp.

Finding the BTU number just right is the best way to ensure that your space feels great.

How to Calculate BTU?

The most efficient method to calculate BTU is to use square footage.

Begin with this general rule of thumb:

20 BTUs/square foot for living area.

Example:

• A 200 sq. ft. room needs about 4,000 BTUs
•

• A 500 sq. ft. space needs around 10,000 BTUs

However, size doesn't mean everything. Also, you'll need to account factors such as:

• Ceiling height: Higher ceilings need more cooling or heating
•

• Sunlight: Bright, sunny rooms need more BTUs
• People: Add about 600 BTUs per person beyond two
• Appliances: Add extra BTUs if the room has heat-producing equipment
• Room type: Kitchens usually need 4,000 more BTUs

These are starting points. A BTU calculator lets you input all the information so that you do not have to make a guess.

BTU Per Square Foot Estimates

Here's a quick overview of the amount of BTUs most rooms require, depending on the size of the room:

• 100-150 sq. ft. → 5,000 BTUs
•

• 150-250 sq. ft. → 6,000 BTUs
• 250-300 sq. ft. → 7,000 BTUs
• 300-350 sq. ft. → 8,000 BTUs
• 350-400 sq. ft. → 9,000 BTUs
• 400-450 sq. ft. → 10,000 BTUs
• 450-550 sq. ft. → 12,000 BTUs
• 550-700 sq. ft. → 14,000 BTUs
• 700-1,000 sq. ft. → 18,000 BTUs
• 1,000-1,200 sq. ft. → 21,000 BTUs
• 1,200-1,400 sq. ft. → 23,000 BTUs
• 1,400-1,500 sq. ft. → 24,000 BTUs
• 1,500-2,000 sq. ft. → 30,000 BTUs
• 2,000-2,500 sq. ft. → 34,000 BTUs

These are general figures. Always adjust according to the temperature, insulation, and the use of your room.

What Affects BTU Needs?

The size of your room plays a big role, but other factors can increase or decrease your BTU requirements.

1. Ceiling height
2. Standard estimates use 8-foot ceilings. If your ceiling is higher than 8 feet, increase the BTUs.
3. Sunlight
4. Rooms that receive lots of direct sunlight will require greater cooling power. You can increase the cooling power by 10 percent if your room is exposed to direct sunlight most of the day.
5. Shade
6. If the area is mostly shaded, you could reduce your BTU estimate by 10 percent.
7. The number of people
8. More people mean more body heat. Add 600 BTUs for each person beyond two.
9. Appliances
10. Rooms that have ovens, stoves, or other heating devices require extra cooling, particularly kitchens. You can add 4,000 BTUs if you're sizing for a kitchen.
11. Climate
12. If you reside in a humid or hot region, you might require more cooling than the typical chart suggests. The colder regions typically require more BTUs of heating per square foot.

These adjustments can help you measure the system more precisely, and which means better performance.

Why Accurate BTU Calculation Matters?

Getting the BTU number right keeps your system working the way it should.

If the unit is too small:

• It runs constantly
• It struggles to reach the target temperature
• Energy bills go up
• The system wears out faster

If the unit is too big:

• It cools or heats the space too quickly
• It shuts off before removing humidity
• The room feels damp or uneven
• The system has short cycles, which can cause long-term damage

Right-sizing eliminates all this. It allows your customer to remain comfortable and helps them save money over the long term. Your installations will also appear stylish and professional.

Cooling vs. Heating BTU Needs

Cooling and heating use the same BTU concept, but the numbers can vary.

Cooling:

• Start with 20 BTUs for each square foot. Next, adjust for people, sun exposure, and the height of your ceiling.

Heating:

The heating requirements are more dependent on the area. The AC BTU calculator adjusts for the factors below to give a better result.

• Warmer climates: about 30 BTUs per square foot.
• Colder climates: 40 to 60 BTUs per square foot
• Older homes with poor insulation could require even more

Heating systems need to bridge greater temperature differences, especially during winter. This means that the BTU number is typically more than what you'd normally use to cool the same area.

When to Use a BTU Calculator vs. Manual J?

A BTU calculator is a fast way to get a rough estimate. It works well for simple jobs like sizing a window AC or picking a heater for a single room.

But if you’re installing a full HVAC system, it's better to use a Manual J calculation.

Manual J is the industry standard. It looks at everything, including insulation, windows, local climate, and how the space is used. HVAC professionals rely on it to get system sizing right.

Use a BTU calculator when:

• You need a quick estimate
• The space is small or simple
• You're just comparing a few unit sizes

Use Manual J when:

• You're sizing a full HVAC system
• You want precise numbers
• The building layout is large or complex

Both are useful. Start with a calculator, then use Manual J for the final call.

Final Thoughts

The right BTU size makes all the difference. It helps your system run better, last longer, and keep your customers comfortable year-round.

Whether you're using a quick BTU calculator or doing a full load calculation, start with the basics, adjust for the space, and always double-check your numbers.

Today’s top HVAC businesses are also using smart tools and software to speed up sizing, improve accuracy, and manage jobs more efficiently.

From digital BTU calculators to full HVAC apps, technology helps teams save time, reduce errors, and stay productive in the field.

A well-sized system doesn’t just save energy. It builds trust.

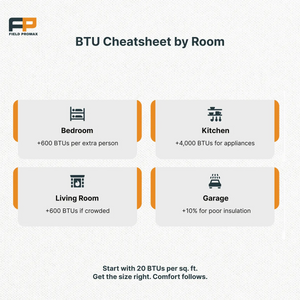

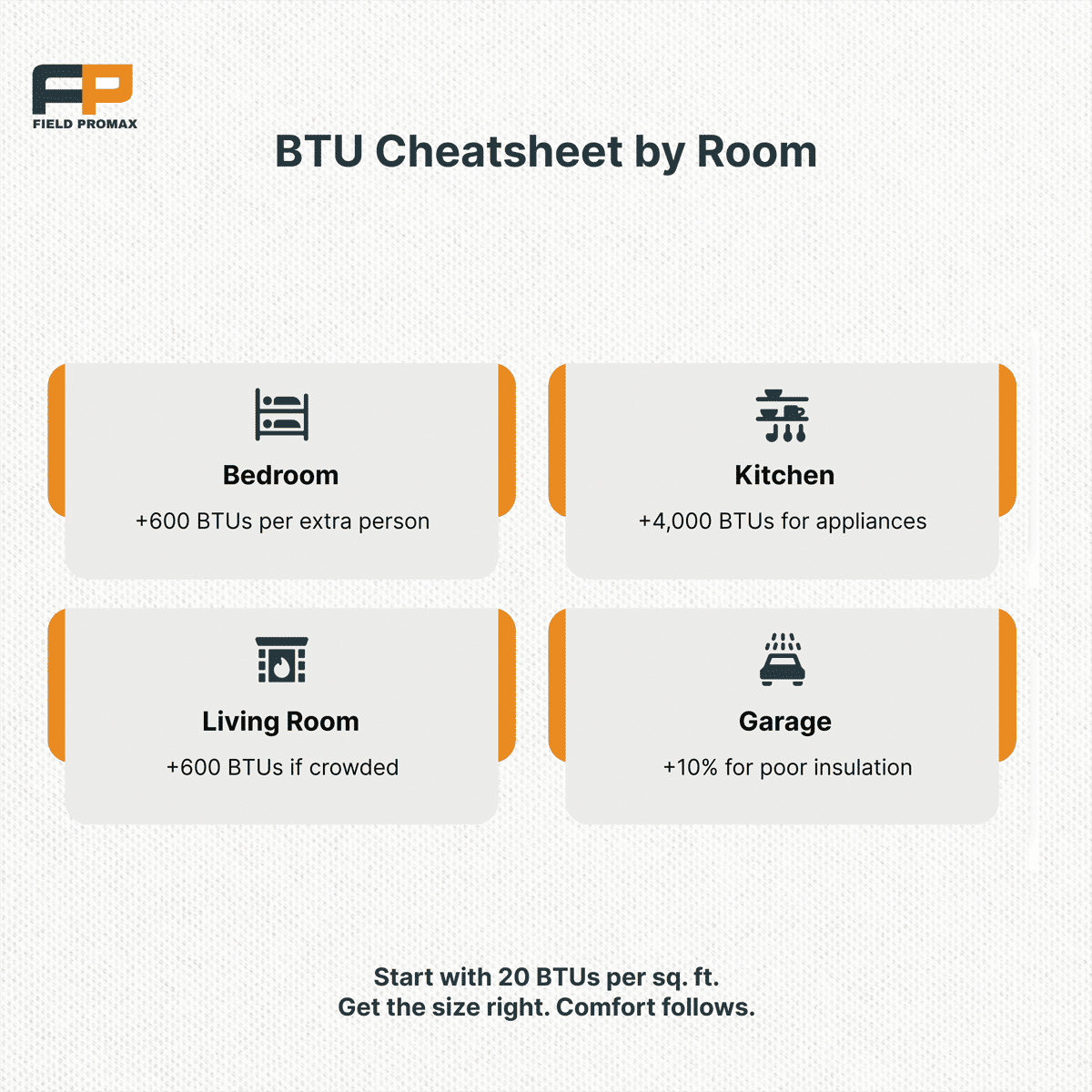

Key Differences

Why Two Different Calculators?

Room AC Calculator

Accounts for human comfort factors like occupancy, room usage, sun exposure because you're conditioning a specific living space.

Key Considerations:

• Human heat generation (600 BTU per person)
• Kitchen appliances add significant heat load
• Sun exposure affects cooling requirements
• Room usage patterns impact needs

General Purpose Calculator

Focuses on thermal load – the raw energy needed to change air temperature in a large volume, used for sizing central systems.

Key Considerations:

• Raw volume calculations
• Temperature differential requirements
• Building envelope efficiency
• Safety margins for equipment sizing

Implementation Tips

For Room AC Calculator:

1. Validation: Ensure room size is reasonable (50-1000 sq ft typical)
2. Safety Margins: Round up to nearest 500 BTU for equipment availability
3. User Guidance: Provide BTU range recommendations rather than exact numbers
4. Equipment Matching: Show corresponding AC unit sizes (tons, watts)

For General Purpose Calculator:

1. Temperature Ranges: Validate temperature changes (typically 20-80°F difference)
2. Professional Use: Include disclaimers about professional HVAC consultation
3. Seasonal Considerations: Allow for both heating and cooling calculations
4. Load Distribution: Consider multiple zones for large spaces
